DR Velero Hooks

Velero hooks let application containers run custom commands during backup or restore. Common uses include database quiesce and resume, cache flushing, post-restore initialization, restore markers, and application reload actions.

Testudo does not implement a custom hook executor. It accepts, validates, stores, and projects native Velero hook structures. Velero still performs the actual execution.

warning

Hooks execute commands inside application Pods or restored Pods. Before using them in production, validate idempotency, timeout behavior, failure handling, and data consistency in a test namespace.

Supported Scope

Scenario	Input field	Projection target	Hook execution
Manual application backup	hooks	AppBackup.spec.template.hooks -> Velero Backup.spec.hooks or Schedule.spec.template.hooks	Yes
Manual application restore	hooks	AppRestore.spec.template.hooks -> Velero Restore.spec.hooks	Yes
DR instance data backup	spec.veleroHooks.dataBackup	AppBackup created by DataSync	Yes
DR instance data restore	spec.veleroHooks.dataRestore	AppRestore created by DataSync	Yes; exec post hooks are adapted for Trafficless restore
DR resource sync	spec.veleroHooks exists	AppBackup/AppRestore created by ResourceSync	Not projected
DR drill data restore	DisasterDrill.spec.veleroHooks.dataRestore	AppRestore created for drill data restore	Yes
DR drill data backup	DisasterDrill.spec.veleroHooks.dataBackup	Unsupported	Rejected by the server

Prerequisites

Before enabling hooks:

• Velero is installed and the BackupStorageLocation is available.
• The namespace, label selector, and resource scope match the Pods that should run hooks.
• The target container image contains the script or shell used by the hook command.
• If the command writes to a PVC path such as /data/hook.log, that path is mounted in the container.
• Sensitive values are passed through existing Secret env vars, envFrom.secretRef, or mounted files, not as plaintext command arguments.

Console Entry Points

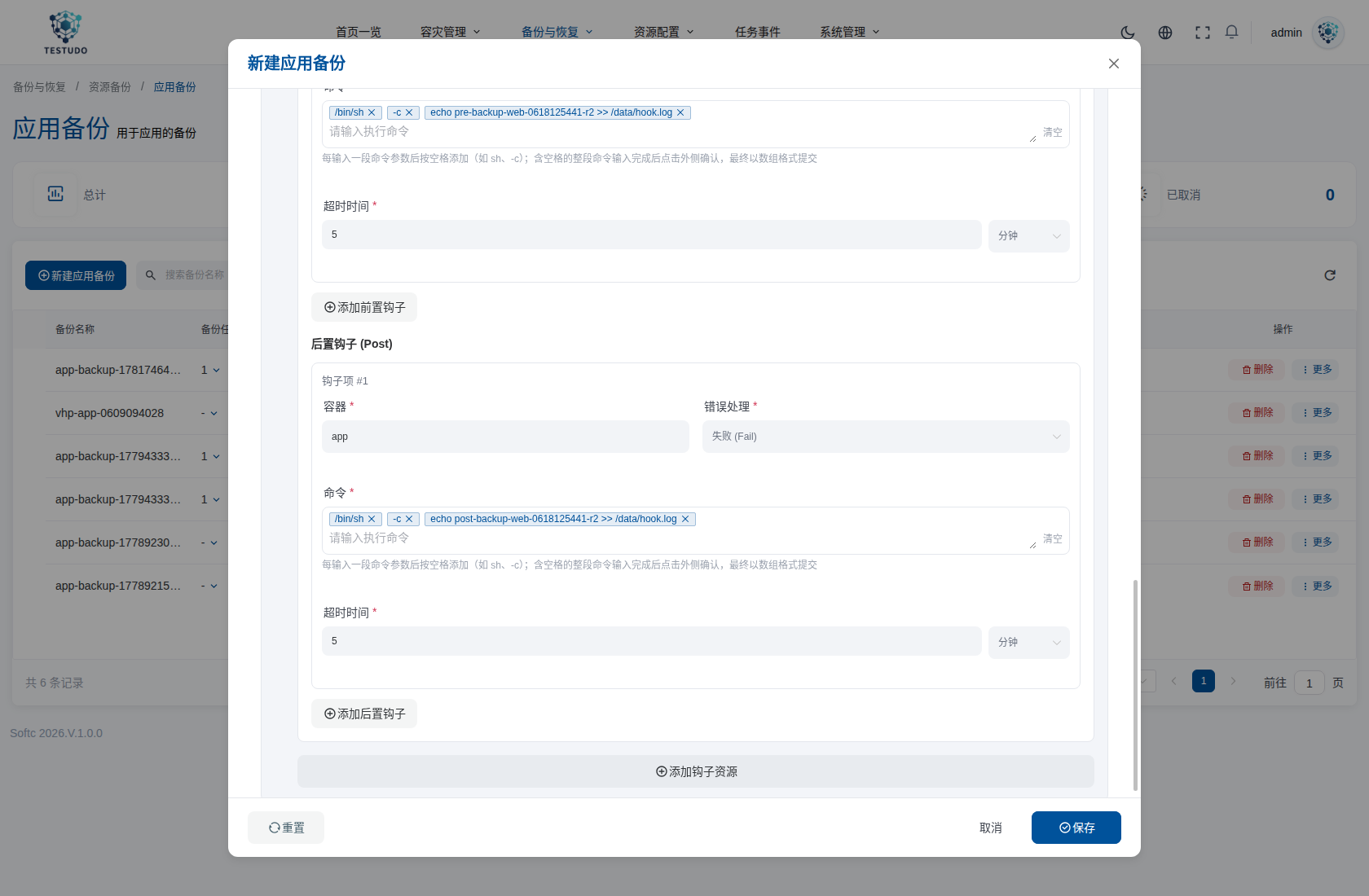

AppBackup Hooks

Open Backup & Restore / App Backup, then create or edit an application backup. Enable backup hooks in the advanced section and configure hook resources, selectors, pre hooks, and post hooks.

Backup hooks support:

• pre: runs before backing up the matched Pod.
• post: runs after backing up the matched Pod.
• container: application container where the command runs.
• command: native Velero argv array.
• timeout: per-exec timeout.
• onError: Fail or Continue.

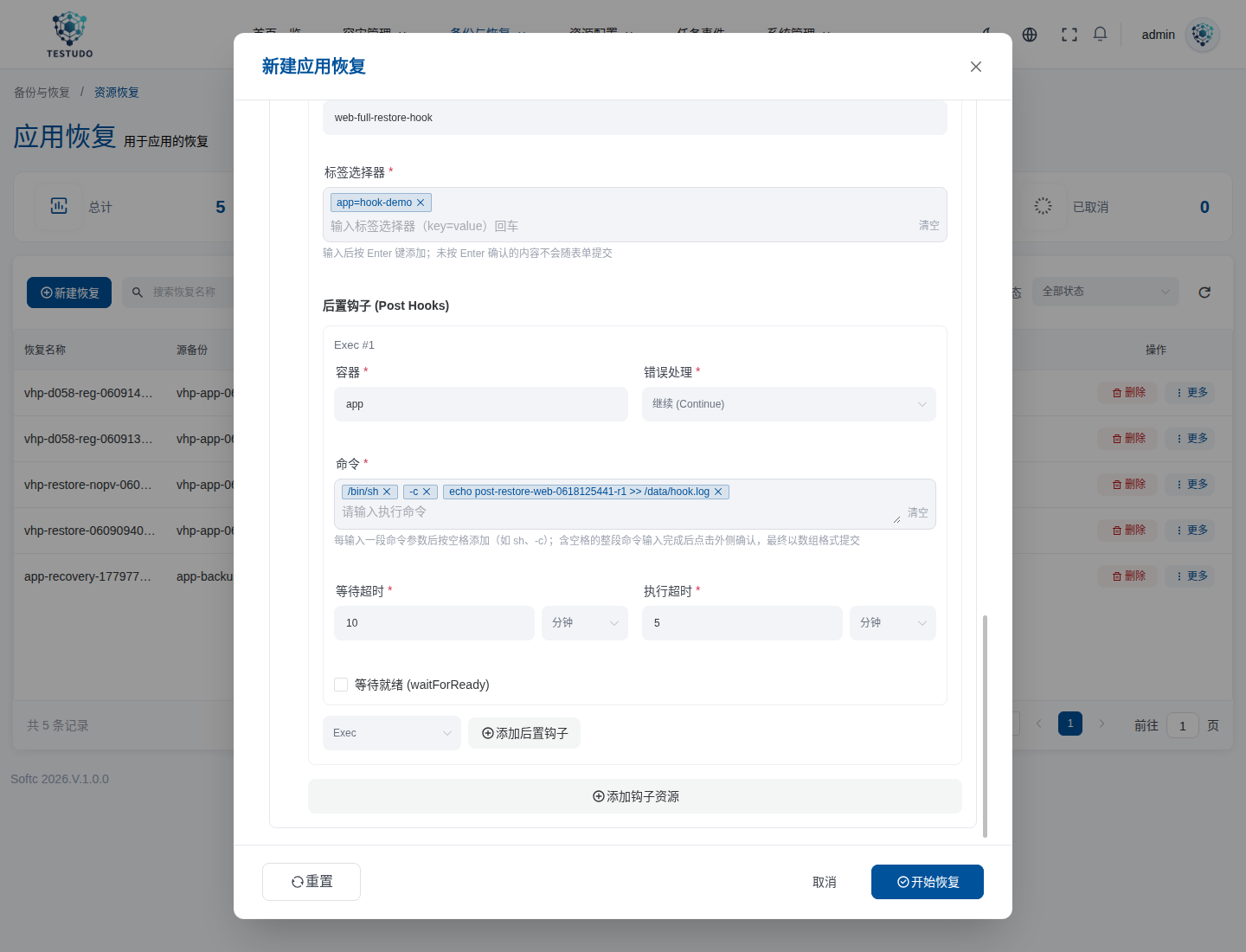

AppRestore Hooks

Open Backup & Restore / App Restore, then enable restore hooks while creating a restore. Restore hooks are usually used to initialize restored Pods or inject init containers.

Restore hooks support:

• postHooks[].exec: runs a command against restored Pods.
• postHooks[].init: injects an init container into restored Pods.
• waitForReady: whether to wait for the container to become ready.
• waitTimeout: ready wait timeout.
• execTimeout: command execution timeout.

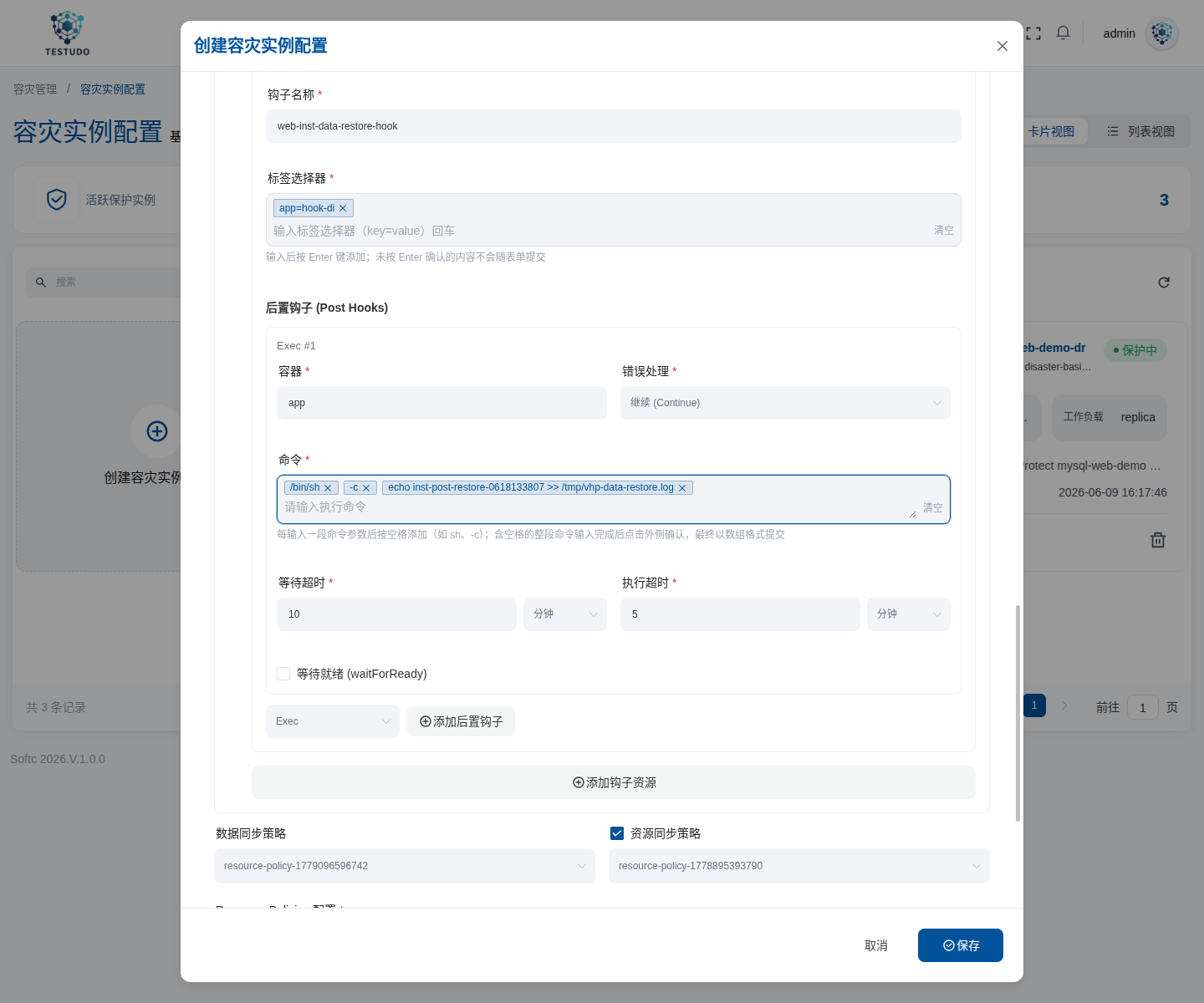

DR Instance Hooks

Open DR Management / Instance Configuration, then create or edit a DR instance. Enable backup hooks and restore hooks in advanced options.

The saved instance stores:

spec:
  veleroHooks:
    dataBackup:
      resources: []
    dataRestore:
      resources: []

DataSync reads these fields:

• dataBackup is projected to the AppBackup used for data sync backup.
• dataRestore is projected to the AppRestore used for data sync restore.
• When instance hooks are updated, later DataSync runs align the existing ds-* AppBackup desired template before triggering a new backup.

Command Format

Hook commands must use the native Velero argv array. In the console, each blue chip is one array element.

Recommended:

["/bin/sh", "-c", "echo pre-backup >> /data/hook.log"]

Do not submit the whole command as a single string:

/bin/sh -c echo pre-backup >> /data/hook.log

That is not the structure Velero expects. The current console uses segmented chips and submits the final value as an array.

If a command needs shell expansion, put the shell itself in argv:

["/bin/sh", "-c", "dr-hook pre-backup --mode=${DR_MODE:-quiesce}"]

${DR_MODE} is expanded by the shell inside the application container. Testudo does not render or replace it.

Selectors And Multiple Init Hooks

Hook labelSelector uses the native Kubernetes LabelSelector semantics. Multiple keys in matchLabels are ANDed and cannot express OR for the same key:

labelSelector:
  matchLabels:
    app: abc
    tier: backend

For OR over multiple values of the same key, such as app=abc OR app=qwe, use matchExpressions with In:

labelSelector:
  matchExpressions:
    - key: app
      operator: In
      values:
        - abc
        - qwe

For OR across different keys or condition groups, such as app=abc OR component=qwe, split the configuration into multiple hook resources. Testudo passes the native Velero structure through and does not extend selector syntax.

Multiple restore init hooks are allowed. Velero injects the matched init hooks into restored Pods, and the final initContainers[].name values on the same Pod must be unique. Testudo does not rename or merge duplicate initContainer names. Use distinct names:

postHooks:
  - init:
      initContainers:
        - name: restore-init-db
          image: registry.example.com/dr-tools:1.0
  - init:
      initContainers:
        - name: restore-init-cache
          image: registry.example.com/dr-tools:1.0

Manual AppBackup Example

For API or CRD usage, backup hooks are stored in AppBackup.spec.template.hooks:

apiVersion: testudo.softcdata.com/v1
kind: AppBackup
metadata:
  name: bookinfo-backup-hook
spec:
  cluster: prod-a
  schedule: ""
  template:
    storageLocation: minio-dr
    includedNamespaces:
      - demo-bookinfo
    labelSelector:
      matchLabels:
        app: bookinfo
    hooks:
      resources:
        - name: app-quiesce
          includedNamespaces:
            - demo-bookinfo
          includedResources:
            - pods
          labelSelector:
            matchLabels:
              app: bookinfo
          pre:
            - exec:
                container: app
                command:
                  - /bin/sh
                  - -c
                  - echo pre-backup >> /data/hook.log
                onError: Fail
                timeout: 5m
          post:
            - exec:
                container: app
                command:
                  - /bin/sh
                  - -c
                  - echo post-backup >> /data/hook.log
                onError: Continue
                timeout: 5m

A one-time backup creates a Velero Backup with spec.hooks. A scheduled backup creates a Velero Schedule with spec.template.hooks.

Manual AppRestore Example

Restore hooks are stored in AppRestore.spec.template.hooks and projected to Velero Restore.spec.hooks:

apiVersion: testudo.softcdata.com/v1
kind: AppRestore
metadata:
  name: bookinfo-restore-hook
spec:
  cluster: prod-b
  backupName: bookinfo-backup-hook
  restorePVs: true
  targetCluster: prod-b
  template:
    backupName: bak-bookinfo-backup-hook-xxxx
    includedNamespaces:
      - demo-bookinfo
    namespaceMapping:
      demo-bookinfo: demo-bookinfo-restore
    hooks:
      resources:
        - name: app-after-restore
          includedNamespaces:
            - demo-bookinfo-restore
          includedResources:
            - pods
          labelSelector:
            matchLabels:
              app: bookinfo
          postHooks:
            - exec:
                container: app
                command:
                  - /bin/sh
                  - -c
                  - echo post-restore >> /data/hook.log
                onError: Continue
                waitForReady: false
                waitTimeout: 10m
                execTimeout: 5m

For init hooks, use native Kubernetes initContainer fields:

postHooks:
  - init:
      initContainers:
        - name: restore-init
          image: registry.example.com/dr-tools:1.0
          command:
            - /bin/sh
            - -c
          args:
            - dr-restore-init --namespace=$POD_NAMESPACE
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          envFrom:
            - secretRef:
                name: restore-hook-secret
      timeout: 10m

DR Instance Example

DR instance hooks apply to the automatic DataSync path:

apiVersion: testudo.softcdata.com/v1
kind: DisasterInstance
metadata:
  name: bookinfo-dr
spec:
  config: dc-prod
  namespaces:
    - demo-bookinfo
  veleroHooks:
    dataBackup:
      resources:
        - name: freeze-before-data-sync
          includedResources:
            - pods
          labelSelector:
            matchLabels:
              app: bookinfo
          pre:
            - exec:
                container: app
                command:
                  - /bin/sh
                  - -c
                  - echo inst-pre-backup >> /data/hook.log
                onError: Fail
                timeout: 5m
          post:
            - exec:
                container: app
                command:
                  - /bin/sh
                  - -c
                  - echo inst-post-backup >> /data/hook.log
                onError: Continue
                timeout: 5m
    dataRestore:
      resources:
        - name: init-after-data-restore
          includedResources:
            - pods
          labelSelector:
            matchLabels:
              app: bookinfo
          postHooks:
            - exec:
                container: app
                command:
                  - /bin/sh
                  - -c
                  - echo inst-post-restore >> /tmp/data-restore-hook.log
                onError: Continue
                waitForReady: false
                waitTimeout: 10m
                execTimeout: 5m

Trafficless Compatibility For DataSync dataRestore

DataSync data restore creates temporary Trafficless Pods so restored Pods are not routed by Services or adopted by workload controllers. Trafficless restore removes application labels and keeps platform isolation labels.

If the user-provided dataRestore exec post hook uses an application selector:

labelSelector:
  matchLabels:
    app: bookinfo

Testudo adapts the generated data restore AppRestore:

1. It matches the original backed-up Pod with the user selector.
2. After Trafficless labels are applied, it adds a system marker label to the restored Pod, such as testudo.softcdata.com/data-restore-hook-0=true.
3. It rewrites the corresponding exec post hook selector to the marker selector.
4. It preserves command, container, onError, waitForReady, waitTimeout, and execTimeout.

Init restore hooks are not marker-rewritten because they match the original object before Pod creation.

info

When inspecting the AppRestore created by DataSync, the dataRestore exec hook selector may not equal the application selector you entered on the instance. This is expected. Validate execution with Velero status.hookStatus and an application marker, not by byte-for-byte selector comparison.

DR Drill Hooks

Drills only support dataRestore hooks:

• If the drill does not configure veleroHooks.dataRestore, it inherits the instance dataRestore hook.
• If the drill configures veleroHooks.dataRestore, it overrides the instance hook. The two are not merged.
• If the drill explicitly submits veleroHooks: {}, inheritance is cleared for this drill restore.
• If the drill submits veleroHooks.dataBackup, the server rejects it because drills do not create a new data backup.

API fragment:

{
  "name": "bookinfo-drill-hook",
  "instanceName": "bookinfo-dr",
  "veleroHooks": {
    "dataRestore": {
      "resources": [
        {
          "name": "drill-after-restore",
          "includedResources": ["pods"],
          "labelSelector": {
            "matchLabels": {
              "app": "bookinfo"
            }
          },
          "postHooks": [
            {
              "exec": {
                "container": "app",
                "command": ["/bin/sh", "-c", "echo drill-post-restore >> /data/hook.log"],
                "onError": "Continue",
                "waitForReady": false,
                "waitTimeout": "10m",
                "execTimeout": "5m"
              }
            }
          ]
        }
      ]
    }
  }
}

Validation And Safety Limits

The server validates common mistakes before the configuration reaches CRDs:

Rule	Behavior
Hook target resources explicitly exclude pods	Rejected
Empty command	Rejected
onError is not Fail or Continue	Rejected
Command contains platform placeholders such as ${testudo.namespace} or {{ namespace }}	Rejected
Command, args, or env value contains obvious plaintext secrets such as password=plain or token=plain	Rejected with VeleroHookSensitiveParameter
Backup exec timeout > 10m	Rejected
Restore exec execTimeout > 10m	Rejected
Restore exec waitTimeout > 30m	Rejected
Restore init timeout > 30m	Rejected

Pass sensitive values with Secret references:

envFrom:
  - secretRef:
      name: app-hook-secret

or:

env:
  - name: APP_TOKEN
    valueFrom:
      secretKeyRef:
        name: app-hook-secret
        key: token

Status

Velero writes hook execution summaries into Backup or Restore status:

status:
  hookStatus:
    hooksAttempted: 2
    hooksFailed: 0

Testudo echoes the status in:

• AppBackup.status.history[].veleroStatus.hookStatus
• AppRestore.status.restoreStatus.hookStatus
• DataSync sync history backupHookStatus and restoreHookStatus

Useful commands:

kubectl get appbackup <appbackup> -n disaster-system -o yaml
kubectl get apprestore <apprestore> -n disaster-system -o yaml
kubectl --context <source-cluster> -n velero get backup <velero-backup> -o yaml
kubectl --context <target-cluster> -n velero get restore <velero-restore> -o yaml
kubectl --context <cluster> -n <app-namespace> exec deploy/<workload> -- cat /data/hook.log

For DR instance paths, inspect generated AppBackup and AppRestore resources:

kubectl get datasync -n disaster-system
kubectl get appbackup -n disaster-system | grep '^ds-'
kubectl get apprestore -n disaster-system | grep '^rec-ds-'

Troubleshooting

Symptom	Likely cause	Action
Empty hookStatus	Selector did not match a Pod, or the hook does not apply to that restore phase	Check namespace, includedResources, labelSelector, and backup/restore scope
hooksAttempted > 0 but hooksFailed > 0	Command exited non-zero, or container/path is missing	Check Velero describe/logs and application container logs
Server returns a sensitive-parameter error	Plaintext password/token/secret appears in command or args	Use Secret env, Secret envFrom, or mounted files
Server returns a timeout error	Timeout exceeds platform limits	Lower timeout or move long work into an asynchronous application-side task
DataSync dataRestore AppRestore uses a platform marker selector	Trafficless compatibility rewrite	Expected; validate hookStatus and application markers
ResourceSync has no hooks	ResourceSync does not project hooks	Use DataSync dataRestore or Drill dataRestore when a restore-time command is required
Restore succeeds but temporary restored Pods disappear	DataSync cleaned up Trafficless temporary Pods	Validate persisted hook output or Velero hookStatus, not only the temporary Pod's presence
